TE Connectivity AMP Connector Wire to Wire Superseal 1.5mm Series Housing Receptale 282105-1,282106-1,282107-1,282108-1

TE Connectivity AMP Connector Wire to Wire Superseal 1.5mm Series Housing Receptale 282105-1,282106-1,282107-1,282108-1

Description:

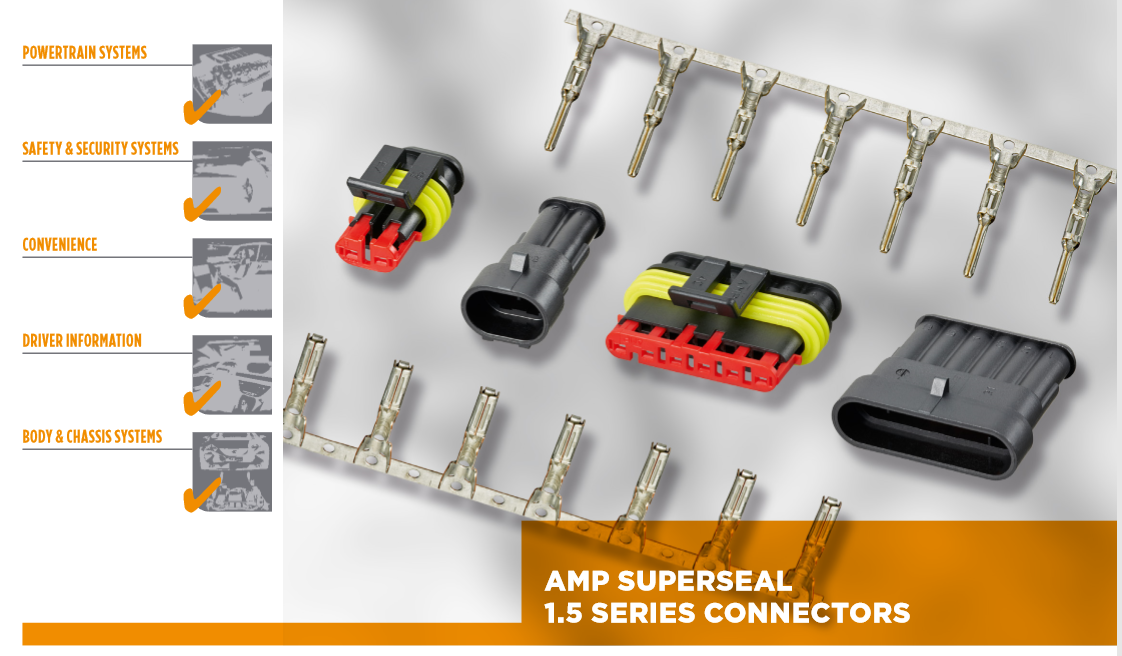

TE Connecitivty has deve l oped the AMP SUPERSEAL 1.5 series con nector family to meet the increasing re quire ments for reliability and water proofness. AMP SUPERSEAL 1.5 series con nector exceed the requirements prescribed by IP 67 accord ing IEC 60529 and DIN 40050-9 stand ards and has its appli cation in the auto motive, agri culture and industrial machinery. For sensor ap pli cation the AMP SUPERSEAL 1.5 series Con nector system is qualified as well.

Advantages

Compact system minimizes packaging requirements
Sealing reliability proven under harsh conditions
Designed for ease of manual harness assembly, engine mounting and under hood environments

Applications

Wire-to-Wire (1.5 mm) and ECU applications, under hood or any location where sealing is required
Suit able for automotive, truck, bus, or off-road vehicles

RoHS Compliant

Part numbers in this catalog are RoHS Compliant, unless marked otherwise. These products comply with European Union Directive 2002/95/EC as amended 1 January 2006 that restricts the use of lead, mercury, cadmium, hexavalent chromium, PBB, and PBDE in certain electrical and electronic products sold into the EU as of 1 July 2006. Note: For purposes of this Catalog, included within the definition of RoHS Compliant are products that are clearly “Out of Scope” of the RoHS Directive such as hand tools and other non-electrical accessories.

Specification:

AMP Connector 282105-1,282106-1,282107-1,282108-1
Connector Style	Housing for male terminals
Connector System	Wire-to-Board,Wire-to-Device, Wire-to-Wire
Number of Positions	1
Operating Voltage (VDC)	24
Color	Black
Cable Exit Angle	180°
Body Material	PA GF
Mating Tab Width	1.5 mm [ .059 in ]
Centerline (Pitch)	6 mm [ .236 in ]
Operating Temperature Range	-40 – 125 °C [ -40 – 257 °F ]
Width	9.3 mm [ .366 in ]
Height	32.2 mm [ 1.268 in ]
Length	17.1 mm [ .673 in ]

**Related products:**
Female Receptacle	282105-1,282106-1,282107-1,282108-1
Terminal	282109-1, 282109-3, 282404-1, 82404-3,282465-1,
Male Plug	282087-1,282088-1,282089-1,282090-1
Wire Seal	281934-2, 281934-3, 281934-4,282081-1

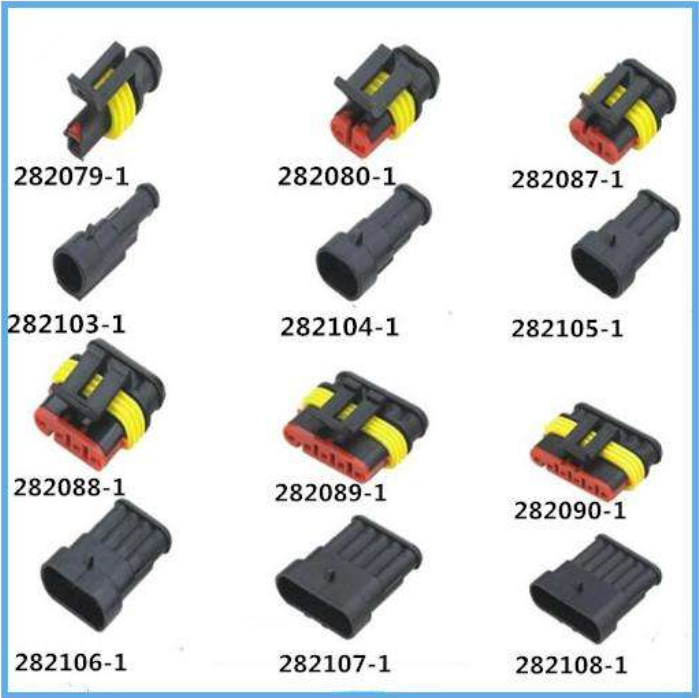

AMP Superseal 1.5MM Series:

POSITION	Female	Male
1 PIN-black/gray	282079-1,282079-2, 1-282079-2	282103-1, 282103-2
2 PIN-black/gray	282080-1, 282080-2	282104-1, 282104-2, 282104-3
3 PIN-black/gray	282087-1, 282087-2	282105-1, 282105-2
4 PIN-black/gray	282088-1, 282088-2	282106-1, 282106-2
5 PIN-black/gray	282089-1, 282089-2	282107-1, 282107-2
6 PIN-black/gray	282090-1, 282090-2	282108-1. 282108-2
2 PIN-white	1745022-1
3 PIN-white	1745083-1	1845082-1
4 PIN-orange	1745101-1
