Kemet SMD Auto X7R, Ceramic, 0.068 uF, 10%, 250 VDC, X7R, SMD,
MLCC, Temperature Stable,
Automotive Grade, C0805C225K4RACAUTO
Overview:
KEMET’s Automotive Grade Series surface mount capacitors in C0G
dielectric are suited for a variety
of applications requiring proven, reliable performance in harsh
environments. Whether under-hood or
in-cabin, these devices emphasize the vital and robust nature of
capacitors required for mission and
safety critical automotive circuits. Stricter testing protocol and
inspection criteria have been
established for automotive grade products in recognition of
potentially harsh environmental conditions.
KEMET automotive grade series capacitors meet the demanding
Automotive Electronics Council's
AEC–Q200 qualification requirements.
Benefits
• AEC–Q200 automotive qualified
• −55°C to +125°C operating temperature range
• Lead (Pb)-Free, RoHS and REACH compliant
• EIA 0402, 0603, 0805, 1206, 1210, 1812, and 2220 case sizes
• DC voltage ratings of 10 V, 16 V, 25 V, 50 V, 100 V, 200 V, and
250 V
• Capacitance offerings ranging from 0.5 pF up to 0.47 μF
• Available capacitance tolerances of ±0.10 pF, ±0.25 pF, ±0.5 pF,
±1%, ±2%, ±5%, ±10%, and ±20%
• Non-polar device, minimizing installation concerns
• 100% pure matte tin-plated termination finish, allowing for
excellent solderability
| Capacitance: | 68000 pF, 1kHz 1.0Vrms |
| Capacitance Tolerance: | 10% |
| Voltage DC | 250 VDC |
| Dielectric Withstanding Voltage: | 625 VDC |
| Temperature Range | -55/+125°C |
| Temperature Coefficient: | X7R |
| Capacitance Change with Reference to +25°C and 0 VDC Applied (TCC): | 15%, 1kHz 1.0Vrms |
| Dissipation Factor: | 2.50% 1kHz 1.0Vrms |
| Aging Rate: | 3% Loss/Decade Hour |
| Insulation Resistance: | 14.706 GOhms |

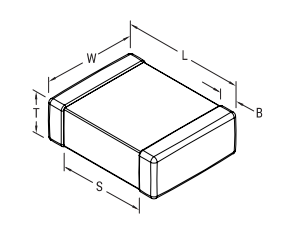

Dimensions:
Packing Details:
