Kemet T528, Tantalum, Polymer Tantalum, Reduced Volume SMD
T528Z337M004ATE009
Overview:
The KEMET Organic Capacitor (KO-CAP) is a solid electrolytic
capacitor with a conductive polymer
cathode capable of delivering very low ESR and improved capacitance
retention at high frequencies.
KO-CAP combines the low ESR of multilayer ceramic, the high
capacitance of aluminum electrolytic,
and the volumetric efficiency of tantalum into a single surface
mount package. Unlike liquid electrolyte
-based capacitors, KO-CAP has a very long operational life and high
ripple current capabilities.
The T528 low ESL Facedown Terminal Polymer Electrolytic combines
ultra-low ESR and high
capacitance in a package design that offers the lowest ESL in the
market. This series offers
exceptional performance for high-speed microprocessor, FPGA, or
ASIC decoupling designs.
The T528 utilizes a unique termination design that allows for a
reduction in the inductance loop
area and comes in a low profile 1.7 mm case height. This series
offers improved capacitance
retention at frequencies of up to 1 MHz.
Benefits
• ESR values down to 5 mΩ
• Stable capacitance across temperature and voltage
• No aging effects
• High ripple handling
• Volumetrically efficient
• High frequency capacitance retention
• 100% accelerated steady state aging
• 100% surge current tested
• Halogen-free epoxy and RoHS compliant
| Capacitance: | T527 |
| Capacitance Tolerance: | 20% |
| Voltage DC | 10 VDC (85C), 7.97 VDC (125C), 5 VDC (150C) |
| Dielectric Withstanding Voltage: | 80 VDC |
| Temperature Range | -55/+105°C |
| Temperature Coefficient: | C0G |
| Dissipation Factor: | 4.50% 120Hz 20C |
| Resistance: | 2900 mOhms (100kHz) |
| Ripple Current: | 6000 mAmps (100kHz 45C), 4200 mAmps (85C), 1500 mAmps (105C) |
| Leakage Current: | 132 uA (5min 25C) |
Packing Detail:
| Weight: | 206.33 mg |
| Packaging: | T&R, 178mm |
| Packaging Quantity: | 1000 |

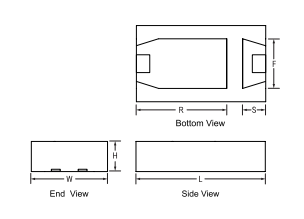

Dimensions:
